Truly Reversible Axial Fan from Denmark

• Aerofoil Design with the Highest Efficiency and truly reversible airflow
• Special Si12 Cu Fe Al Alloy material for high temperature operation up to 220oC.
• Blades available in super tough Nylon Glass  Reinforced (GRN) material
• Diameters from 600, 700, 800, 900, 1000, 1200  and 1250 mm are available
• All fans leaves the factory dynamically balance.
• All fans’ operating points’ are carefully selected by software,

AXIAL FANS

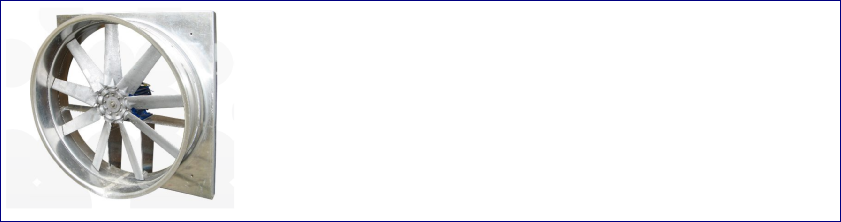

 Aluminum Fan Housing

• Square shape available in 800, 900, and 1000 mm diameter
• Round shape available in 600, 700, 800 and 900 mm diameter

• Fan housing design affects fan airflow efficiency  :

   - tip clearance should be less than 1%, preferably 0.5% of fan       diameter

   - bell mouth improves air flow

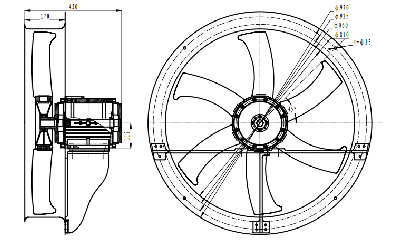

Dia. 800 mm Aluminum Fan Housing Drawing

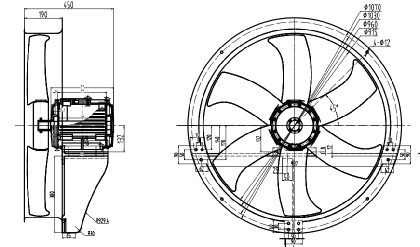

Dia. 900 mm Aluminum  Fan Housing Drawing
