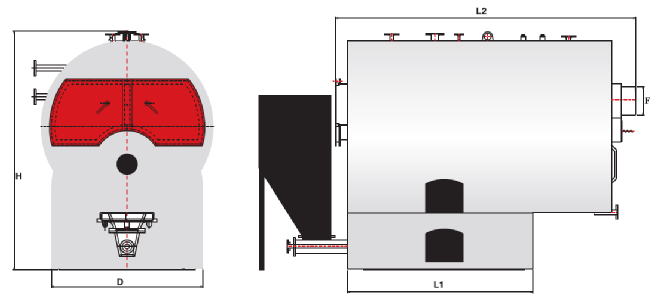

The AKUP steam boiler is designed for burning wood off-cuts and sawdust. It is based on Scotch boiler design with 3-passes.

The furnace has a very special and modular design, with high quality Nickel alloy inside. The burning box is cooled by air through air nozzles. Burning takes place on top of the burning box. Side door to the furnace allows small pieces of wood-offcuts to be manually fed.

Design calculations are made according to 97/23 EEC Pressure Vesse Directives EN-12953 standards. High quality steel for the body and seamless  boiler tubes are used. Large water volume and optimal thermal balance allows the boiler to operate efficiently and long life.

The boiler has high efficiency due to good combustion design and high quality refractory used and good insulation.

Boiler has automatic controls with many levels of safety built-in.



AKUPSolid Fuel Fired Steam Boiler with Under Stoker Feeder

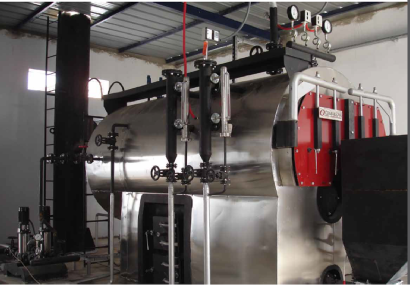

Wood-Waste Fired Steam Boiler
